How to Install and Use Armitage on Kali Linux

Learn how to install and use Armitage on Kali Linux and Debian-based systems. For both beginners and experienced users.
This post will show you how to set up and use Armitage on Kali Linux and Debian-based Linux systems. Armitage offers a graphical interface (GUI) for Metasploit, Metasploit is a pentesting framework usually used via command line. Armitage it's good for those uncomfortable with the command line but interested in pentesting. By the end of this tutorial, you'll be ready to install and use Armitage with just a few simple steps.

This post is suitable for both Experts with Metasploit and beginners. It applies to all Debian-based Linux distributions with Metasploit pre-installed. If your system doesn't have Metasploit yet, follow the provided instructions to install it before proceeding with Armitage.

How to Install and Use Armitage on Kali Linux


Please pay attention to all steps and screenshots for better understand.

Installing Armitage on Kali Linux (And Debian-Based Distributions)

To start, use the apt package manager to install Armitage, as shown in the screenshot below.

sudo apt install armitage

How to Install and Use Armitage on Kali Linux

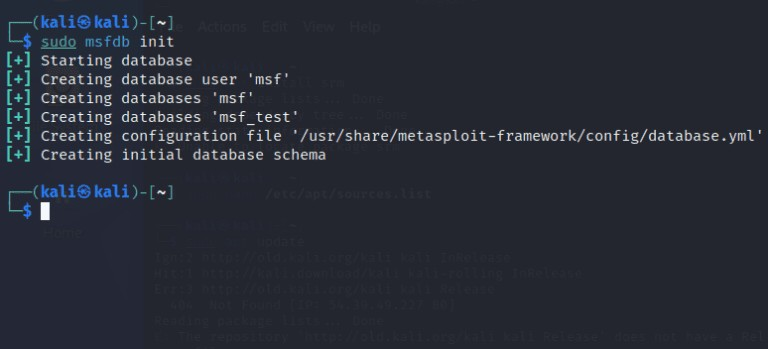

Once the installation is complete, start the Metasploit database by executing the following command.

sudo msfdb init

How to Install and Use Armitage on Kali Linux

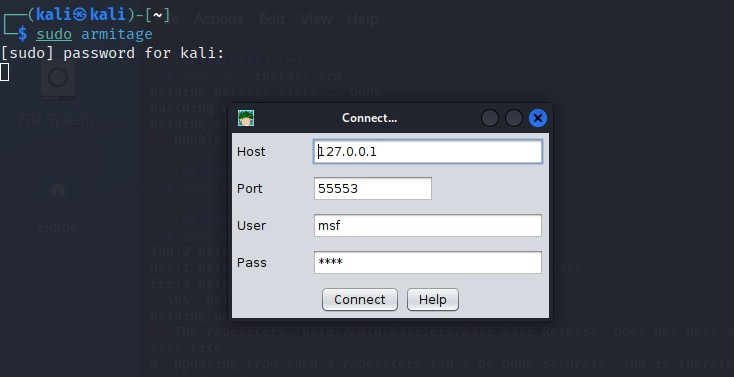

After starting the database, you can now launch the Armitage, as shown in the image below.

You'll be prompted to enter the database host, port, user, and password. You can keep these at their default settings if you want.

sudo armitage

How to Install and Use Armitage on Kali Linux

You'll be asked if you want Armitage to start the RPC server. This server isn't necessary, but you can run it if you want Metasploit to connect with other apps. Otherwise, you can keep it turned off.

How to Install and Use Armitage on Kali Linux

Wait until the database connects.

How to Install and Use Armitage on Kali Linux

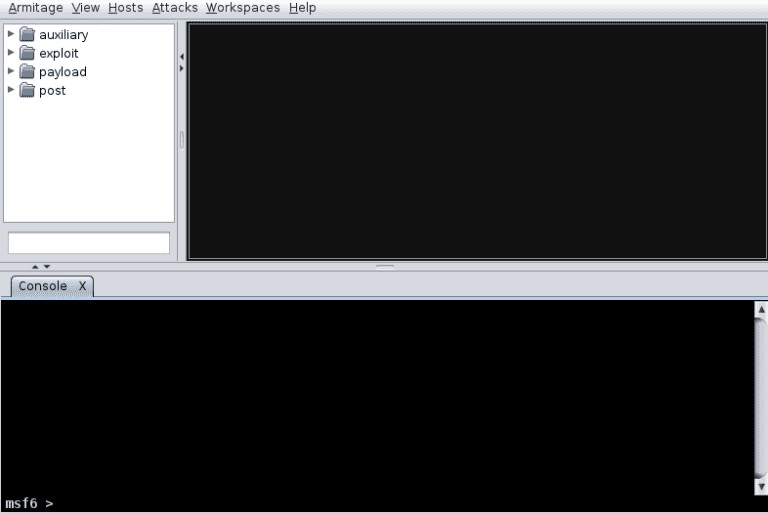

After connecting, the Armitage GUI will show up, as shown in the following figure.

How to Install and Use Armitage on Kali Linux

You can start by adding a host (target) to scan.

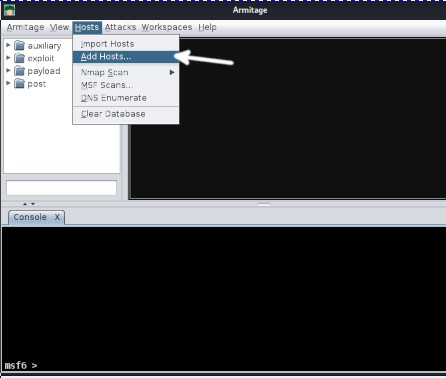

To add a host, click on the "Hosts" option in the top menu bar, and then click on "Add Hosts," as shown in the image below. If you have a file with hosts to import, you can click on the first option.

How to Install and Use Armitage on Kali Linux

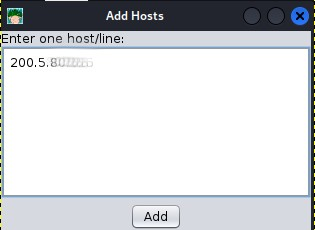

Type the IP address or hostname of your target. Then press the Add button.

How to Install and Use Armitage on Kali Linux

If the host was added successfully, a pop-up box will appear. Click "OK." A computer icon representing the host will then appear in the hosts' section.

How to Install and Use Armitage on Kali Linux

After adding a host, you can begin a scan. To do this, click on "Hosts" again, and then click on "Nmap Scan." Choose the type of scan you want. In this example, I chose an intense scan on all TCP ports.

How to Install and Use Armitage on Kali Linux

You will be asked to confirm the target shown or enter the correct one. If you only add a host, it will appear automatically. Then, click "OK."

How to Install and Use Armitage on Kali Linux

The scanning will start. Wait for it to finish. If you selected an intense scan, it might take hours.

How to Install and Use Armitage on Kali Linux

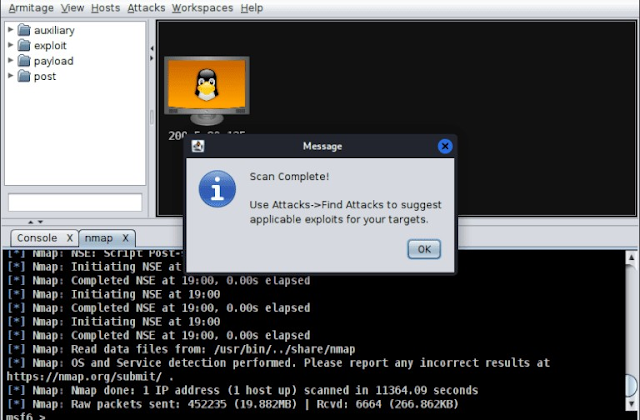

After the scan finishes, a message box will appear, like the one below. It will tell you the scan is done and will ask you to click on the "Attacks" menu and then select "Find Attacks."

How to Install and Use Armitage on Kali Linux

Press Attacks and Find Attacks, as shown in the following figure.

How to Install and Use Armitage on Kali Linux

Armitage will begin looking for ways to exploit vulnerabilities based on the results of the previous scan.

How to Install and Use Armitage on Kali Linux

A new pop-up box will tell you the attack analysis is finished.

How to Install and Use Armitage on Kali Linux

After the analysis is finished, click the host with the right mouse button. Then, click "Attack" to see exploits that work with the scan results. Pick any exploit you'd like to use.

Troubleshooting: Attack Menu Doesn’t Show Up in Armitage

Lots of users say that after analyzing exploits, they can't see the Attack menu. This happens because Armitage only displays exploits that are highly likely to work, by default.

You can tell Armitage to be less strict and allow some room for error, showing exploits with medium to low chances of success. That's what I did in this tutorial.

To do this, click on "Armitage" in the top menu, then click on "Set Exploit Rank" and choose the rank you want to test.

How to Install and Use Armitage on Kali Linux

If you pick the "Poor" option, you'll see many exploits, but most of them won't be useful. If you choose the "Excellent" option, you'll only see exploits that work against the target you've selected.

Conclusion

Armitage is a good choice for people who don't know much about using the Linux command line. Its graphical interface is simple and easy to understand, unlike Metasploit, which needs you to know specific commands.

Installing Armitage on Kali Linux and Debian-based Linux systems is straightforward and can be done by any Linux user, no matter their skill level. This means even beginners can test how secure their system or network is. However, it's a good idea for users to learn the command line version too, because not all systems have a graphical interface.

Thank you for reading our guide on installing Armitage on Kali Linux and starting to use it. Stay with us for more useful Linux tips!
